Trimming saw CS 70 EBG-Set

Technical Details:

• Power consumption 2100 watt
• Idle engine speed 2000 - 4200 RPM
• Saw blade diameter 225.00 mm
• Cutting height 90�/45� 0 - 70/0 - 48 mm
• Inclination 0 (-2)� - 45 (+47) �
• Cutting path 320.00 mm
• Table dimensions 690 x 500 mm
• Table height, legs folded away 375.00 mm
• Table height, legs unfolded 900.00 mm
• Dust extraction connection diameter 27/36 mm
• Cable length 4.00 m
• Product weight without accessories 35.00 kg
• Drive type Mains

Solid, strong and uncompromising.

Strengths and benefits

• 2100 watt universal motor for powerful cutting
• 70 mm cutting depth for an even wider range of applications
• Change quickly from rip to cross cuts with the angle stop
• Moving splinterguard for splinter-free cuts on both sides
• Clearly laid out, well-positioned control elements
• Surrounding V groove for locating angle stops
• Can be upgraded to a sawing station by adding an extensive range of accessories

Main areas of use

• Draw the saw blade for quick, precise cross cuts up to 320 mm wide
• Cross cuts up to 226 mm wide at 45�
• Rip cuts up to a depth of 70 mm
• Tilting saw blade for angled cuts between -2� and 47�
• Retractable spacer wedge for hidden cuts - removal not necessary

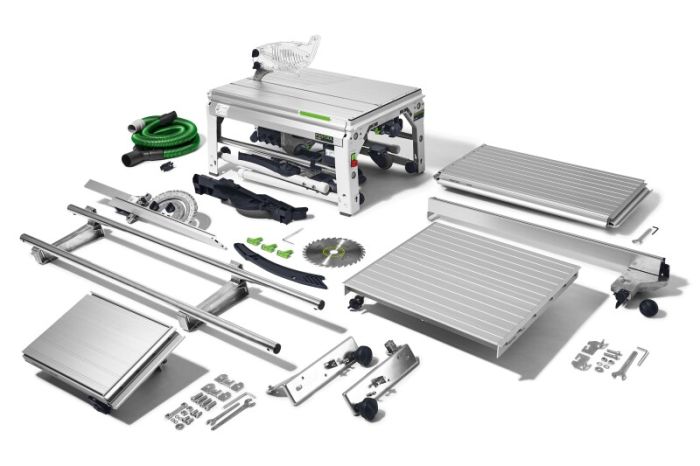

Delivered parts
circular saw blade WOOD UNIVERSAL HW 225 x 2, 6 x 30 W32, sliding table CS 70 ST 650, extension table CS 70 VB, extension table CS 70 VL, ripping-cut fence, angle stop, 3 x splinterguard, dust extraction set, workpiece holder, accessories holder, support with transport roller, Air filter, hex key, WAF 6
