Cordless Percussion Drill Quadrive TPC 18/4 5,0/4,0 I-Set

Technical Details:

• Battery voltage (rated voltage) 18.00 V
• Gears 4
• Idling speed, 1st gear/2nd gear 0 - 500/0 - 800 RPM
• Idling speed, 3rd/4th gear 0 - 2350/0 - 3600 RPM
• Max. number of strokes 57600 RPM
• Drilling diameter, wood/steel 70.00/13 mm
• Drilling diameter in brickwork 10.00 mm
• Torque adjustment 1st/2nd gear 2.00 - 20.00/2.00 - 20.00 Nm
• Max. torque, wood/steel 50.00/75.00 Nm
• Chuck range 1.50 - 13 mm
• Battery capacity 4,0/5,0 Ah
• Product weight without accessories 1.20 kg
• Transport weight incl. accessories 7.4 kg
• Drive type Battery
• Technology Bluetooth�

Pure power, controlled in four gears.

Strengths and benefits

• Powerful for work with screws and drills with larger diameters, rapid for clean work progress when working with small diameters
• Maximum performance: Thanks to the extremely powerful, brushless, and therefore long-lasting, EC-TEC motor
• Robust: Resilient four-speed metal gearbox, also fully covered by the comprehensive support provided by Festool Service
• For an even wider range of applications: Axial impact function that can be activated for drilling into masonry
• The QUADRIVE with four gears for every working situation: From screwdriving with 50 Nm torque in first gear to precise drilling at 3600 rpm in fourth gear
• Versatile: Thanks to the FastFix interface, quick conversion without the need for tools for drilling, screwdriving, angular drilling and angular screwdriving
• The depth stop and eccentric adapter also enable depth-limited screwdriving close to edges
• Flexible cordless system: For applications with high power needs, the 4.0 Ah Li-HighPower Compact battery pack provides the ideal powerful, compact and lightweight solution. The 5.0 Ah battery pack is the right choice for even more power for particularly difficult drilling and screwdriving applications. Fully covered: Needless to say, the comprehensive support provided by Festool Service also applies to battery packs
• Convenient: The work area is optimally lit by LED lighting that can be switched on � can also be controlled via the Festool App
• The high-quality BKS SYS3 D6 PZ TX 50 CE bit cassette is already one of the items included: PZ bit 2 50 mm CE, TX bit 20 50 mm CE, TX bit 25 50 mm CE, TX bit 30 50 mm CE, TX bit 40 50 mm CE, metal drill bit D6 HSS CE
• Mobile: The QUADRIVE comes in a lid compartment Systainer and can be seamlessly integrated into bott vehicle equipment for easy transportation from the bodyshop to the construction site

Main areas of use

• Production of wooden substructures, frame structures
• Installation of doors and windows
• Drilling and screwdriving in wood, metal and plastic
• Drive screws into wood up to 10x300 mm
• Drilling in wood up to 70 mm with Forstner drill bits
• Drilling with impact in brickwork or masonry

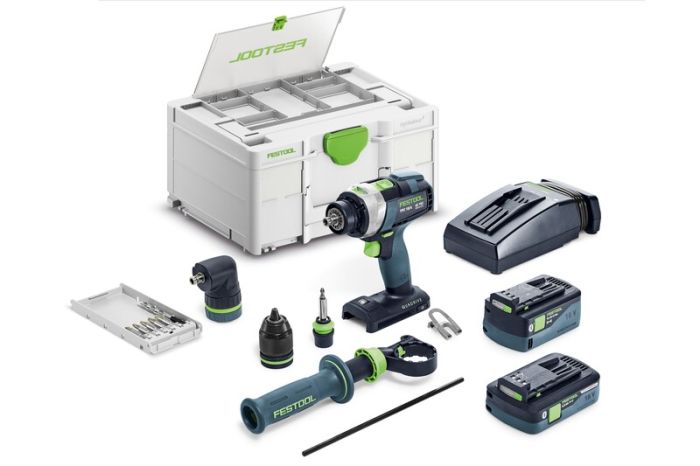

Delivered parts
BP 18 Li 4.0 HPC-ASI battery pack, BP 18 Li 5.0 ASI battery pack, rapid charger TCL 6, WH-CE CENTROTEC tool chuck, CENTROTEC BH 60 CE Imp magnetic bit holder, FastFix keyless chuck 13 mm KC 13-1/2-MMFP, additional side-mounted hand grip, FastFix angle attachment, BKS SYS3 D6 PZ TX 50 CE bit cassette, bit PZ 2, belt clip, Systainer SYS3 DF M 187
