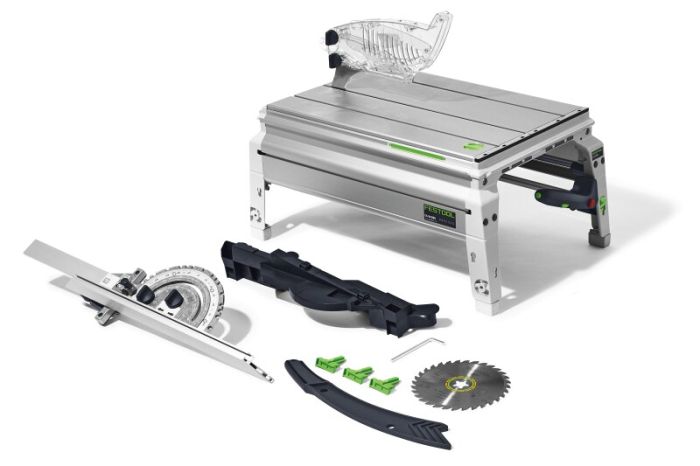

Trimming saw Precisio CS 50 EBG-FLR

Technical Details:

• Power consumption 1200 watt
• Idle engine speed 1600 � 4200 RPM
• Saw blade diameter 190.00 mm
• Cutting height 90�/45� 0 - 52/0 - 37 mm
• Inclination 0 (-2)� - 45 (+47) �
• Cutting path 304.00 mm
• Table dimensions 585 x 400 mm
• Table height, legs folded away 333.00 mm
• Dust extraction connection diameter 27/36 mm
• Cable length 4.00 m
• Cutting height 52 mm
• Product weight without accessories 22.90 kg
• Transport weight incl. accessories 24.0 kg
• Drive type Mains

Full power perfectly under control.

Strengths and benefits

• Tool-less FastFix saw blade changes
• Multifunction handle: one handle with all functions integrated
• Change quickly from rip to cross cuts with the angle stop
• Moving splinterguard for splinter-free cuts on both sides
• Surrounding V groove for locating angle stops
• Can be upgraded to a sawing station by adding an extensive range of accessories
• Saw blade holder (accessory): saw blades and splinterguard always within easy reach

Main areas of use

• Draw the saw blade for quick, precise cross cuts up to 300 mm wide
• Cross cuts up to 200 mm wide at 45�
• Rip cuts up to a depth of 52 mm
• Tilting saw blade for angled cuts between -2� and 47�
• Retractable spacer wedge for hidden cuts - removal not necessary

Delivered parts
circular saw blade WOOD UNIVERSAL HW 190 x 2, 6 FF W32, angle stop, 3 x splinterguard, workpiece holder, accessories holder, hex key, WAF 6
