Table Saw TKS 80 EBS-Set (575826,575827.575825,575840,203457)

Technical Details:

• Power consumption 2200 watt
• Idle engine speed 1700 - 3500 RPM
• Saw blade diameter 254.00 mm
• Cutting height 90�/45� 80/56.00 mm
• Inclination -2 / 47 �
• Table dimensions 690 x 580 mm
• Table height, legs folded away 385.00 mm
• Table height, legs unfolded 900.00 mm
• Dust extraction connection diameter 27/36 mm
• Cable length 4.00 m
• Product weight without accessories 38.40 kg
• Drive type Mains

Your fingers � invaluable!

Strengths and benefits

• Improved safety: Less risk for your fingers - The responsive sensor on the integrated SawStop AIM technology provides increased safety when sawing in non conductive materials.SawStop AIM technology can also be deactivated if necessary
• Flexible: 80mm cutting height, extendable work surface, stopper and angle stop enable flexible work, even with large workpieces
• Splinter free cuts: Fewer splinters on the upper surface of the material in mitre rip cuts by swivelling the saw blade to the left
• Protects your health: Dust extraction attachment with CLEANTEC extraction sleeve for dust free work and a free view of the workpiece
• Space saving: Tool garage attached on the side provides optimal storage space for saw blades, cartridges and push sticks

Main areas of use

• Cross-cutting up to a width of 820 mm with sliding table, at a cutting depth of 20 mm
• Rip cutting up to a cutting height of 80 mm and a width of 600 mm with an extension table
• Tilting saw blade for angled cuts between -2� and 47�

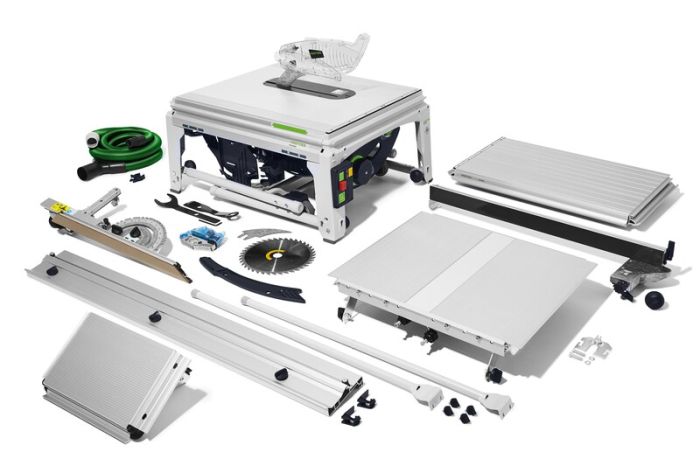

Delivered parts
circular saw blade WOOD UNIVERSAL HW 254 x 2, 4 x 30 W40, KT-TKS 80 cartridge, angle stop, dust extraction set, extension table VB TKS 80, guide extension VL TKS 80, LA TKS 80 stopper, sliding table ST TKS 80, workpiece holder, hex key, WAF 5, 1 open ended spanner, size 50, 1 open ended spanner, size 23
