Sword saw IS 330 EB

Technical Details:

• Power consumption 1600 watt
• Idle engine speed 4600 RPM
• Cutting depth 0�, 90�/45�/60� 330/230/165 mm
• Mitre cuts 0 - 60 �
• Cutting speed (idling) 12.00 m/s
• Blade position 0.00 - 10.00 �
• Dust extraction connection diameter 27/36 mm
• Drive type Mains
• Product weight without accessories 7.10 kg
• Transport weight incl. accessories 10.2 kg
• Cable length 7.00 m

The size with 330 mm cutting depth.

Strengths and benefits

• Ideal for construction sites: cutting depth of 330 mm for cutting thick insulating materials to size and 7.0 kg in weight
• 60� mitre cutting angle with a cutting depth of 165 mm
• Straight and splinter-free cuts thanks to guide rails
• Rotary dust-extraction attachment for connecting an extractor
• Chain changed and tensioned without using tools
• Drawing cut for rapid, jolt-free operation and an outstanding cutting quality
• Not suitable for wood

Main areas of use

• Cutting pressure-resistant insulating materials such as wood fibres, PUR or EPP, etc. to size

Delivered parts

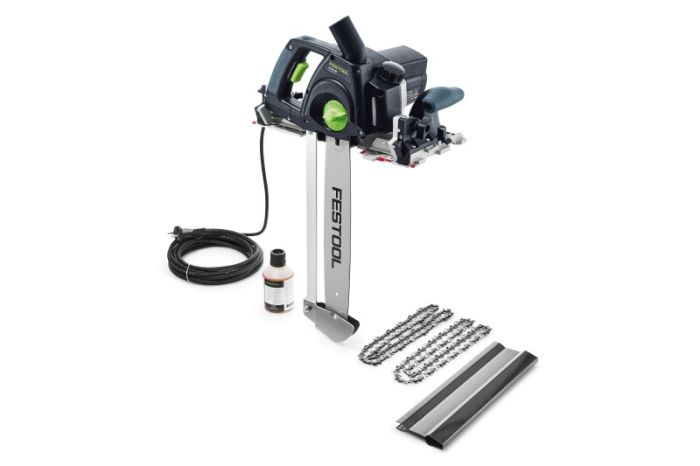

Iso SC 3/8"-90 I-57E chainsaw chain, Iso Hard SC 3/8"-91 IH-57E chainsaw chain, chain oil 250 ml, 7.5 m power cord, protective cover
