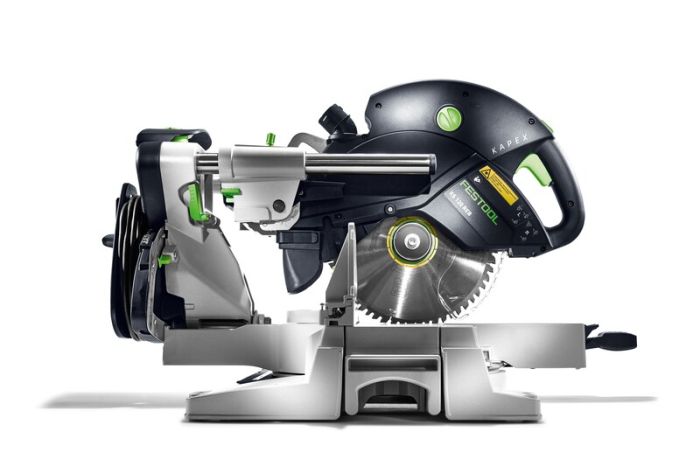

Sliding compound mitre saw only ks 120 REB

Technical Details:

• Power consumption 1600 watt
• Idle engine speed 1400 - 3600 RPM
• Saw blade diameter 260.00 mm
• Cutting depth 90�/90� 305 x 88 mm
• Cutting depth at 45�/90� 215 x 88 mm
• Special cutting depth 90�/90� 60.00 x 120.00 mm
• Crown moulding diagonal cut 45�/90� 168.00 mm
• Inclination angle 47/47 �
• Mitre angle 50/60 �
• Dimensions (W x D x H) 713.00 x 500.00 x 470.00 mm
• Cable length 3.50 m
• Dust extraction connection diameter 27/36 mm
• Special cut. depth 45�/90� (left) 40.00 x 120.00 mm
• Special cutting depth 45�/90� (right) 20.00 x 120.00 mm
• Cutting depth 50�/90� (left) 196 x 88 mm
• Cutting depth 60�/90� (right) 152 x 88 mm
• Cutting depth 45�/45� (left) 215 x 55 mm
• Cutting depth 45�/45� (right) 215 x 35 mm
• Crown moulding diagonal cut at 90�/90� 168.00 mm
• Work height 900.00 mm
• Product weight without accessories 24.30 kg
• Transport weight incl. accessories 27.8 kg
• Drive type Mains

Quality down to the finest detail.

Strengths and benefits

• Twin-column guide with two bearings for unique precision
• Dual-line laser for an accurate indication of the cutting line
• Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
• Special cutting position for cutting depths up to 120 mm
• FastFix saw blade changing for adaptation to the working material
• Twin-column guide for accurate cuts
• Precision angle transfer via bevel and dual-line laser
• Compact, lightweight design for convenient transportation
• Safety brake

Main areas of use

• Trimming skirting boards and cornices up to 120 mm in height � no calculations
• Cutting boards and panels up to 305 x 88 mm
• Trimming crown mouldings up to 168 mm in their original wall position
• Trimming square timber and beams up to 88 mm thick

Delivered parts
circular saw blade WOOD UNIVERSAL HW 260 x 2, 5 x 30 W60, Bevel, workpiece clamp, hex key, WAF 6
