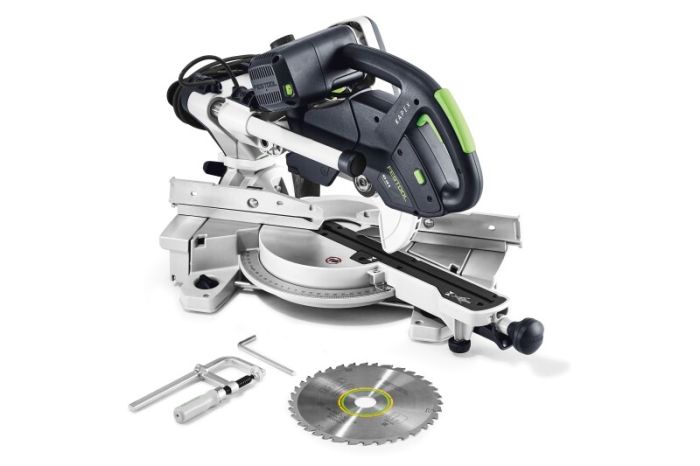

Sliding Compound Mitre Saw KAPEX KS 60 E

Technical Details:

• Power consumption 1200 watt
• Idle engine speed 1300 - 3500 RPM
• Saw blade diameter 216.00 mm
• Cutting depth 90�/90� 305 x 60 mm
• Cutting depth at 45�/90� 215 x 60 mm
• Cutting depth 45�/45� (left) 215 x 40 mm
• Inclination angle 47/46 �
• Mitre angle 60/60 �
• Dimensions (W x D x H) 661.00 x 475.00 x 430.00 mm
• Dust extraction connection diameter 27/36 mm
• Cable length 3.70 m
• Cutting depth 60�/90� 150 x 60 mm
• Cutting depth 45�/45� (right) 215 x 20 mm
• Product weight without accessories 17.90 kg
• Transport weight incl. accessories 21.2 kg
• Drive type Mains

Mobility, versatility and best results � perfectly combined.

Strengths and benefits

• Compact and lightweight, with ergonomic handles and cord holder
• LED spotlight to show cutting lines precisely (included in the set or available as an accessory)
• Inclination angle of up to 47�/46� on each side and mitre angle of up to 60� on each side

Main areas of use

• Ideal for mobile use in assembly applications
• Cutting boards and panels up to 305 x 60 mm
• Trimming strips, profiles and square timber up to 60 mm thick
• Precisely angled adjustment of skirting boards and cornices without calculations � in conjunction with the bevel

Delivered parts
circular saw blade WOOD UNIVERSAL HW 216 x 2, 3 x 30 W36, fastening clamp FSZ 120, hex key, WAF 6
