Cordless table saw CSC SYS 50 EBI-Basic

Technical Details:

• Battery voltage (rated voltage) 2 x 18 V
• Idle engine speed 4500 � 6800 RPM
• Saw blade location hole 20.00 mm
• Inclination angle -10 - +47 �
• Cutting height 0� 0 - 48 mm
• Cutting height 45� 0 - 34 mm
• Cutting height -10� 21 - 32 mm
• Mitre angle 0 - 70 �
• Parallel cut width 280.00 mm
• Tabletop height 228.00 mm
• Dimensions (L x W x H) 512 x 396.00 x 296.00 mm
• Dust extraction connection diameter 27 mm
• Drive type Battery
• Product weight without accessories 15.00 kg
• Transport weight incl. accessories 23.5 kg

Precise sawing to go. The cordless table saw in Systainer format.

Strengths and benefits

• Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2� to 47�.
• Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10�; ideal for undercutting infill panels.
• Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
• Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display � accurate to within a tenth of a millimetre.
• Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
• Convenient: Four saw blade positions can be saved and selected via the digital display.
• Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
• Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70� and +70�
• Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
• Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
• Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
• Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
• Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
• Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
• Healthy working with a system: Ideal also in combination with the Festool cordless extractors
• Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment
• Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
• Unique: Three-year warranty for battery packs and chargers too

Main areas of use

• Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
• Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
• Angled cuts from -2� to 47� (-10� possible in the event of a restricted cutting depth of 21�32 mm) thanks to tilting saw blade
• Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
• Transport practically in the handy Systainer format

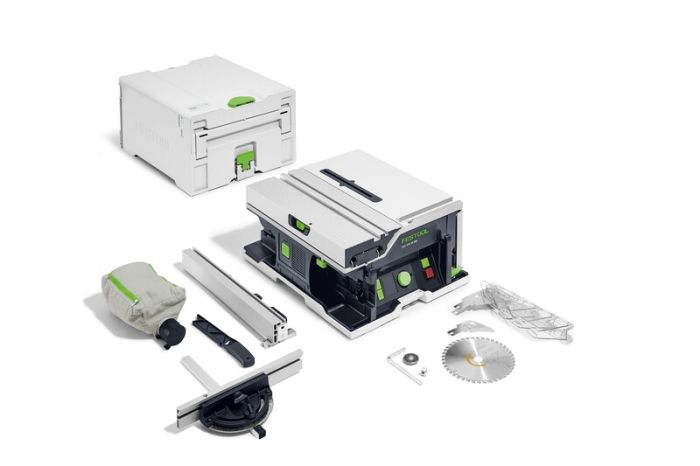

Delivered parts
WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade, parallel side fence, workpiece holder, preset profile setting rail, chip collection bag, splitting wedge for concealed cuts, splitting wedge with protective hood, hex key, WAF 6
