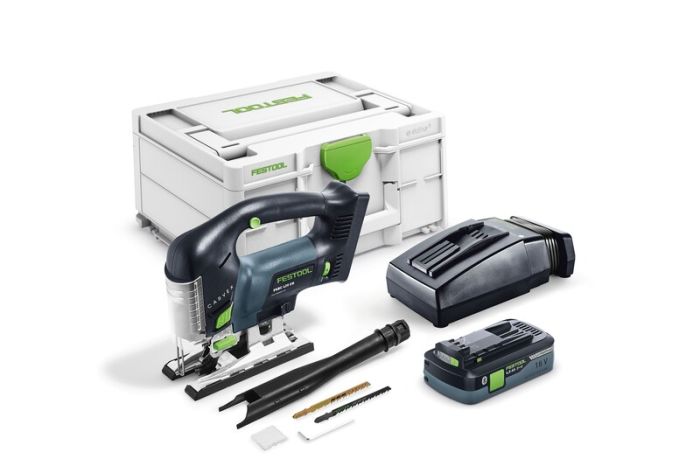

Cordless JIGSAW PSBC420 Li 4.0Ah. (1 battery)

Technical Details:

• Battery voltage (rated voltage) 18.00 V
• Stroke rate 1000 - 3800 RPM
• Pendulum cover adjustment in stages 4
• Cutting depth in wood 120.00 mm
• Cutting depth in NF metals 20.00 mm
• Cutting depth in steel (soft) 10.00 mm
• Battery capacity 4.00 Ah
• Product weight without accessories 1.80 kg
• Transport weight incl. accessories 5.7 kg
• Drive type Battery
• Technology Bluetooth�

The cordless D-handle version of the CARVEX � performance similar to a mains-powered tool.

Strengths and benefits

• Excellent behaviour in curves thanks to threefold saw blade guide and rigid lifter rod
• Simple handling thanks to the softgrip and ergonomic design
• Electronic switch-on/off on both sides, reachable in every grip position
• Fast, tool-free changing of tables, baseplates and saw blades
• Easily visible scribe mark through stroboscope light and powerful extraction
• Powerful cutting stroke for rapid working progress
• Noticeably lighter at full power thanks to Li-HighPower battery pack with high current resistant battery cells
• Convenient dust extraction: The battery pack communicates via Bluetooth� with the Bluetooth� module of the CLEANTEC mobile dust extractor (can be retrofitted to the CT 26/36/48 as an accessory, directly integrated into the CT MINI I and MIDI I) and starts the mobile dust extractor automatically when the CARVEX is switched on
• The cordless pendulum jigsaw in a Systainer� can also be seamlessly integrated into bott vehicle equipment for easy transportation from the workshop to the construction site. Systainer� products are compatible with one another and can be connected to all previous Systainer generations, mobile dust extractors and many other system accessories, such as roll boards or the mobile workshop

Main areas of use

• Cut-outs for sinks and kitchen hobs
• Trimming work on furniture, kitchens, for interior fitting
• Cutting circles and curves
• Coping end strips
• Cutting workpieces to length
• Edge notching on beams
• Cutting from below
• Convenient working with dust extraction � Bluetooth� battery pack automatically starts Bluetooth�-compatible mobile dust extractor in AUTO mode

Delivered parts
BP 18 Li 4.0 HPC-ASI battery pack, rapid charger TCL 6, jigsaw blade set: 1 x WOOD FINE CUT S 75/2.5 and 1 x WOOD UNIVERSAL S 75/4 FSG, splinterguard, Systainer SYS3 M 187
