Circular Saw HK85 EB-Plus

Technical Details:

• Power consumption 1900 watt
• Idle engine speed 3500 RPM
• Saw blade diameter 230.00 mm
• Angular range 0 - 60 �
• Cutting depth 0�, 90� 0 - 86 mm
• Cutting depth at 45�/60� 62/47 mm
• Dust extraction connection diameter 27/36 mm
• Cable length 4.30 m
• Product weight without accessories 7.90 kg
• Transport weight incl. accessories 11.8 kg
• Drive type Mains

The timber construction all-rounder.

Strengths and benefits

• High-torque 1900 W motor with power electronics ensures constant power when sawing
• Safe and easy handling thanks to the cutting depth adjustment with plunge function, pendulum hood remote control and guide wedge
• Angle adjustment with central clamping mechanism from 0 to 60 degrees
• Using the conversion kit accessories, the portable circular saw can become a groove cutter
• In conjunction with the trimming rail, fast, accurate and mobile cross cuts
• Safe and perfectly straight sawing along the guide rail

Main areas of use

• Rip and cross cuts in materials up to 85 mm thick
• Wide application range for mitre cuts up to 60�
• Cutting tenons, square timber and boards
• Cutting panel materials, wood fibre insulating materials and sandwich panels

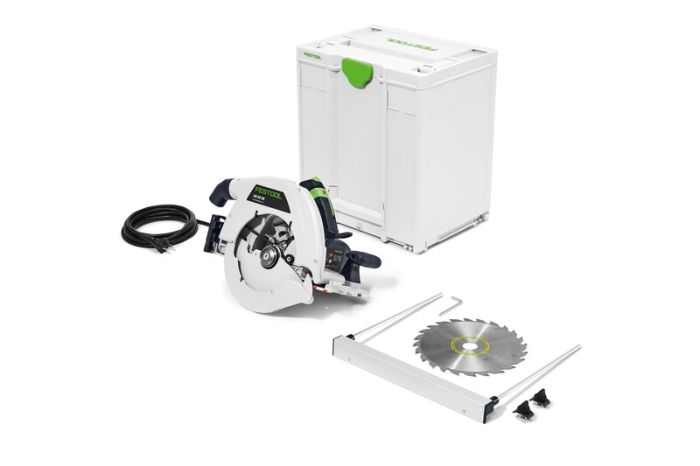

Delivered parts
circular saw blade WOOD STANDARD HW 230 x 2, 5 x 30 W24, parallel side fence, hex key, WAF 5, Systainer SYS3 M 437

Warranty all-inclusive--> Find out more
