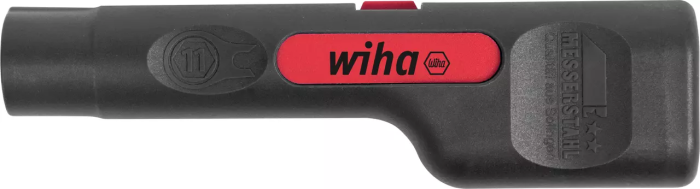

Z73206.44241 STRIPPING & ASSEMBLY TOOL 6.0-8.0 VDE

Simplifies your work: Improved accessibility in confined working situations such as in installation boxes due to narrow design.

Saves time: Stripping of coaxial cable in only one work step with fixed dimensions and length stop.

Saves space: Compact tool with all functions for the processing and assembly of coaxial cables with F-connector.

Product dimensions: 125 x 35 x 22 mm (LxWxD)

Application: For incremental stripping of all commonly used coaxial cables (e.g. antenna and transmission cables) with 6 � 8 mm outer diameter.
For the assembly or disassembly of F-screw connectors.

Stripping and skinning of coaxial cables of � 6 - 8 mm

Mounting and dismantling of F-connectors thanks to open hex

Perfect for confined spaces

Secure and space-saving storage

Several work steps are required when processing a coaxial cable with F-screw connector. The Wiha stripping and assembly tool offers the user all the necessary functions in one compact tool. Precisely fitting stripping of coaxial cables with an outer diameter of 6 to 8 mm can be carried out in just one work step. The stripping is performed quickly and in a space-saving manner by means of multiple rotary movements using two pairs of blades positioned opposite each other. The already adjusted stripping dimension is designed for common F-screw connectors. In the next step, the integrated gripping jaws can be used to screw F-connectors onto the already stripped cable. Then the open hexagon SW11 ensures easy assembly or disassembly of the F-connector. The hexagon offers very good accessibility and is easy to operate, especially in confined work environments. For safe and space-saving storage, the tool can be locked in a closed position by means of a slide.
