Workshop Template APS 900/2

Technical Details:

• Dimensions (L x W x H) 1000 x 380.00 x 16.00 mm
• Panel depth with corner joints, without adjustment 600/650 mm
• Panel depth with corner joints, with adjustment 900.00 mm
• For worktop connectors, bolt length 65/150 mm

Precise joining.

Strengths and benefits

• Robust routing template made from aluminium
• For corner and panel joints with fixed fence with panel depths of 600 and 650 mm or, if moved, up to 900 mm
• Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
• Panel depths greater than 900 mm also possible using extension profiles
• For groove cutters with 14 mm diameter and copying rings with 30 mm diameter, recommended for OF 2200/1400 router

Main areas of use

• Corner connector in the worktop area
• For panel joins

• for corner and panel connectors with depths of up to 900 mm
• for diameter of cutter 14 mm and copying ring 30 mm

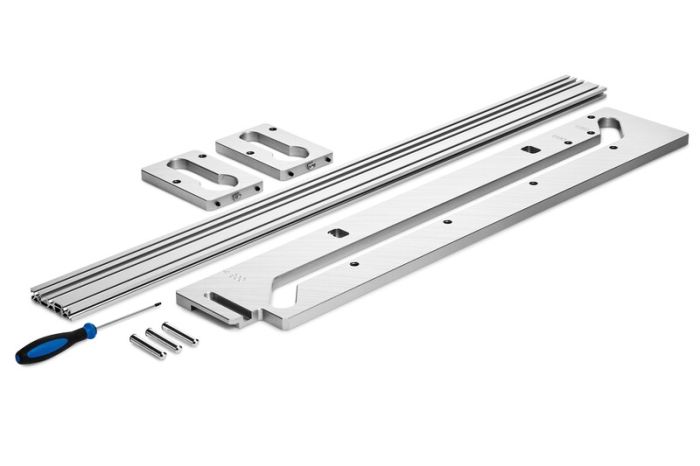

Delivered parts
corner connection template, profile MFS-VP 1000, 3 x Bolt, Screwdriver
