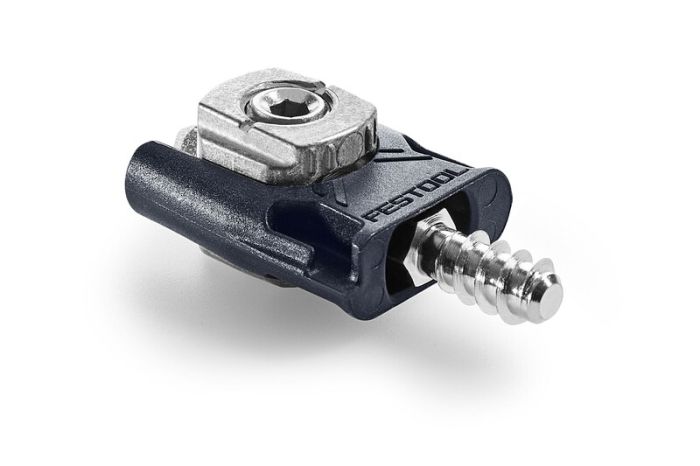

Corner connection KV-LR32 D8/50

Technical Details:

• Joint fixture (8 mm DOMINO dowel cross-cuts) D8
• Drilling diameter for Euro bolt 5.00 mm
• DOMINO routing depth for base part 28.00 mm
• Drilling diameter in base part 15.00 mm
• Panel thickness 18 � 28 mm

The perfect connection. The adaptable frame and furniture connectors for the DOMINO DF 500 joining machine.

Strengths and benefits

• The clever DOMINO system enables very simple and precise positioning of joints, thereby rendering additional stops and positioning aids unnecessary. For working efficiently and quickly
• The connectors' large tightening distance and long bolts make furniture assembly significantly easier. Cupboard assembly is therefore no problem, and you can do it easily on your own.
• The flush-screwed fixture elements protect each furniture component from being scratched
• Routing and cutting tolerances of up to 1.4 mm are compensated for without problems by the fixture
• The detachable DOMINO basic structure connectors and furniture connectors are perfectly suited for a panel thickness of 18 mm to 28 mm.

Main areas of use

• Detachable corner connector between a row of holes and a DOMINO milling groove
• Furniture manufacture
• Exhibition stand construction

• for the DF 500, DF 500 R, DFC 500
• for 50 corner joints with the DF 500 and drilling series of holes
• the DOMINO/LR 32 KV-LR 32 D8/50 connector is positioned both in the cupboard panel in a 5 mm hole in the series of holes and the base of the structure with the DOMINO jointer DF 500
• without cover caps

Delivered parts
Split anchor, 50 x Bolt with Euro thread for drilling series of holes, 50 x Plastic trays, 50 x Cross anchor with threaded pin
